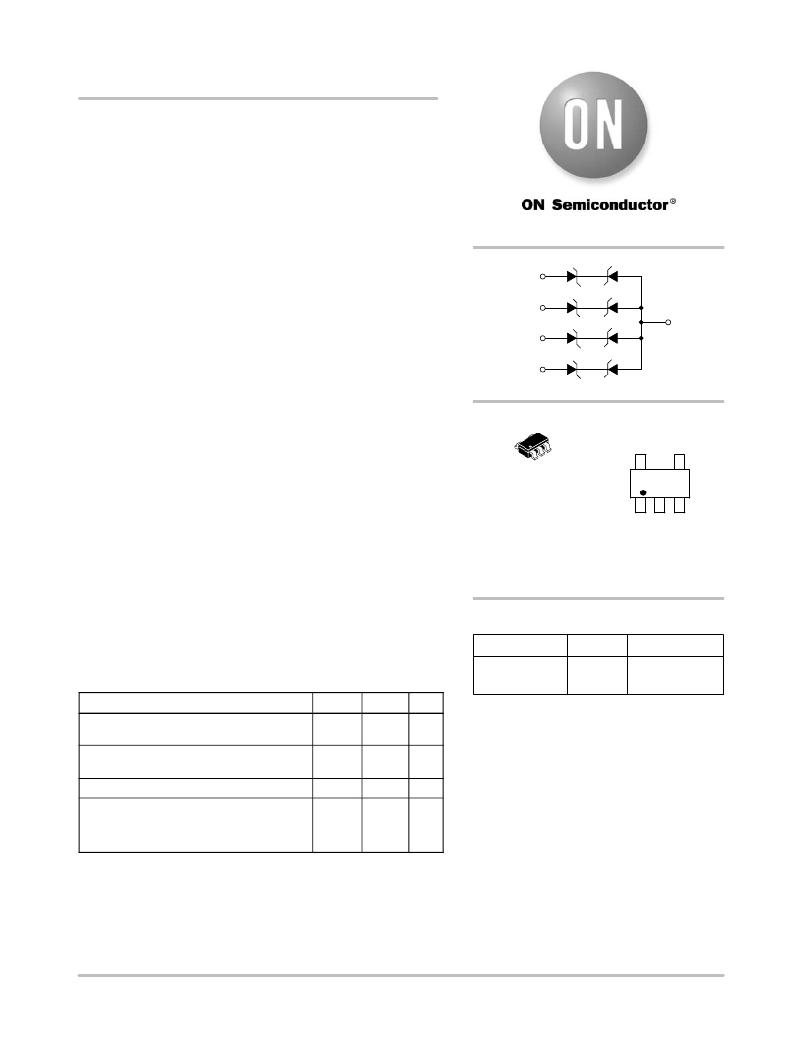

NUP4004M5
5-Pin Bi-Directional Quad
TVS Array
This 5-Pin bi-directional transient suppressor array is designed for
applications requiring transient overvoltage protection capability. It is
intended for use in transient voltage and ESD sensitive equipment
such as computers, printers, cell phones, medical equipment, and other
applications. Its integrated design provides bi-directional protection
for four separate lines using a single TSOP-5 package. This device is
ideal for situations where board space is a premium.
5
http://onsemi.com
Features
? Bi-directional Protection for Four Lines in a Single TSOP-5 Package
? Low Leakage Current
? Low Capacitance
? Provides ESD Protection for JEDEC Standards JESD22
- Machine Model = Class C
4
3
1
2
?
- Human Body Model = Class 3B
Provides ESD Protection for IEC 61000-4-2, 15 kV (Air),
MARKING
DIAGRAM
G
8 kV (Contact)
? This is a Pb-Free Device
Mechanical Characteristics
? Void Free, Transfer-Molded, Thermosetting Plastic Case
? Corrosion Resistant Finish, Easily Solderable
? Package Designed for Optimal Automated Board Assembly
? Small Package Size for High Density Applications
Applications
? LCD, Plasma TV Video Lines
? Other Telephone Sets
? Computers / Printers / Set-Top Boxes
5
5
1
MY M G
TSOP-5
CASE 483
1
MY = Specific Device Code
M = Date Code
G = Pb-Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device Package Shipping ?
MAXIMUM RATINGS (T J =25 ° C, unless otherwise specified)
NUP4004M5T1G
TSOP-5
(Pb-Free)
3000/Tape & Reel
Rating
Operating Junction Temperature Range
Storage Temperature Range
Symbol
T J
T STG
Value
-40 to
125
-55 to
Unit
° C
° C
?For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
150
Lead Solder Temperature – Maximum (10 sec)
Human Body Model ( HBM)
Machine Model (MM)
IEC 61000-4-2 Air (ESD)
IEC 61000-4-2 Contact (ESD)
T L
ESD
260
16
0.4
30
30
° C
kV
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
? Semiconductor Components Industries, LLC, 2008
February, 2008 - Rev. 2
1
Publication Order Number:
NUP4004M5/D
